Product Description
$1,199.00 – $2,490.00
Our wheel sets come fully assembled, and are ready to mount tubeless tyres with the use of sealant
Components used:
Hope Pro 5 hub set (110×15 32h 6-bolt front, 148×12 32h 6-bolt rear)
DT Swiss Competition spokes
DT Swiss Pro-Lock Brass nipples
Tubeless rim tape
Tubeless valves
Description
HUBS:
Hope Pro 5
The Pro 4 proved to be one of the most reliable and versatile hubs on the market. The Pro 5 builds on this with improvements throughout, offering the right balance between speed of pick-up, load capacity, durability and drag.
One of the key design objectives for the Pro 5 was the reduction of drag in the drive mechanism. This has real world riding benefits and was achieved by upgrading the sealing with a new zero drag labyrinth seal, and an improved ratchet and pawl system, with new springs. Both greatly reduce drag as well as increase durability and load capacity when compared with the Pro 4.
Another big update comes in an increase in the points of engagement (from 44 to 108) using an offset 6 pawl freehub design, where 3 pawls are engaged at any time. This achieves the right balance between speed of pick-up, load capacity, drag & durability, and in real-world terms gives a speedy feel on the trail whilst keeping crank movement to an acceptable level without compromising the free running of the hub or its reliability.
RIMS:
XM 481
Riders who like the idea of giving their tires some extra volume and support will find the ideal partner with the XM 481. Its full 30 mm of inner width together with a minimal hook and perfect tubeless compatibility make it ready to tackle all demanding trails, both up and down the mountain.
EX 511
Enduro may be young as a discipline, but at its core is the intrinsic need of riders to ride burlier terrain faster and faster. Something that MTB was all about since the beginning. The EX 511 rim is the perfect tool for this quest: It comes with all the technology that has delivered many EWS wins and packs it in a 30 mm wide profile. Ready to go burlier, faster.
FR541
The FR 541 may not be your first rim, but it aspires to be the last. The new rim shape improves the impact resistance, enabling you to push a little harder on the trails. It also enhances the pinch flat protection for a trusty ride on rougher tracks. Build this rim with care and it will reward you with resistance and lightness for a long-lasting bond.
We Are One UNION
There were three main points that went into The Union. We wanted a carbon rim that was lightweight, had lower radial stiffness than anything we’d made before, and gained a dramatic increase in impact resistance. With our new philosophy on layup design and these key points, we were able to achieve something truly impressive. The Union is made for those who want to race Enduro at a high level and ride harder than ever before. If you have ever had doubts about carbon rims, look no further than The Union.
Additional information
| HUBSET | HOPE PRO 5 |
|---|---|
| FREEHUB BODY | SRAM XD, SHIMANO MICROSPLINE |
| WHEEL SIZE | 29" PAIR, 27.5" PAIR, MULLET PAIR |
| RIM | DT SWISS XM481, DT SWISS EX511, DT SWISS FR541, WE ARE ONE FACTION, WE ARE ONE UNION |
Related Products
CUSTOM WHEELBUILD!
- We Are One Union 29″ Rims
- Industry-9 Hydra 32h Hubset SUPERBOOST
- XD Freehub, 32h and 6 bolt.
- DT Swiss spokes
- DH ready!
Handbuilt Downhill Rear Wheel MX/Mullet from SUMMIT
$899.00
Select options - Hope Pro 5 DH hub 157×12, 6 BOLT, 32H
- DT Comp Spokes w/ Brass Nipples
- RSV 30 HD rim with lifetime crash replacement**
- Includes Rim Tape and Fillmore Valve!
- In stock ready to go!
Our wheel sets come fully assembled, and are ready to mount tubeless tyres with the use of sealant
Components used:
DT Swiss 350 hub set (110x15 32h 6-bolt front, 148x12 32h 6-bolt rear)
DT Swiss Competition spokes
DT Swiss Pro-Lock Brass nipples
Tubeless rim tape
Tubeless valves
$1,199.00 – $2,399.00
Custom Wheelset!
$2,599.00
- Industry 9 Hydra Hubs (15x110mm/148x12mm)
- XD Freehub/ 6 Bolt
- We are One Union rims 32h
CUSTOM WHEEL BUILD!
- DT SWISS 240 HUBS
- 15x110mm & 12x148mm spacing
- XD Freehub
- centrelock
- DT SWISS EX511 RIMS
- 28h
- DT SWISS COMP SPOKES
- DT Swiss Prolock Brass nipples
Comes with tubeless valves and DT Rim tape!
// Wheels machine built and hand finished in Barnoldswick
// Built with Pro 5 32h hubs (J-bend only)
// Centrelock or 6 Bolt disc fitment
// Optimised rim profile suitable for 2.4” – 2.8” tyres
// Tubeless compatible (Valve and Tape supplied)
// Available in 26”, 27.5” and 29”
// 100mm and 110mm Boost front wheel options available
// 135/142mm, 148mm Boost, 150mm & 157mm rear wheel options available
// Shimano Aluminium, Shimano Steel, MicroSpline and Sram XD freehub body options available
// 32mm Tape, Valve and wipe included for Tubeless setup
// Welded 6061 T6 Aluminium rim with eyelets
// Black Sapim Race stainless steel double butted spokes built with silver brass nipples
// Increased engagement from 44 to 108 with a new offset 6 pawl freehub design
// Hub available in black, silver, bronze, blue, orange, purple and red
// Internal width: 30mm, External width: 35mm
// Profile depth: 23mm
// Rim ERD: 26” – 530mm/27.5” – 555mm/29” – 593mm
HAND-BUILT WHEELS!
$1,490.00
- Chris King Centre-Lock Hubset (15x110mm Front/12x148mm Rear, XD Driver)
- DT Swiss XM511 32h Rims
- DT Swiss Comp Spokes
- 3 hub colour options.

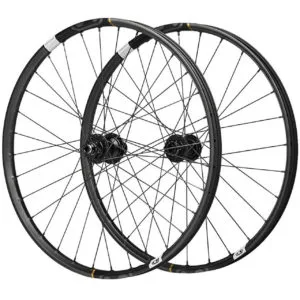

SYNTHESIS ENDURO 11 CARBON WHEELSET
